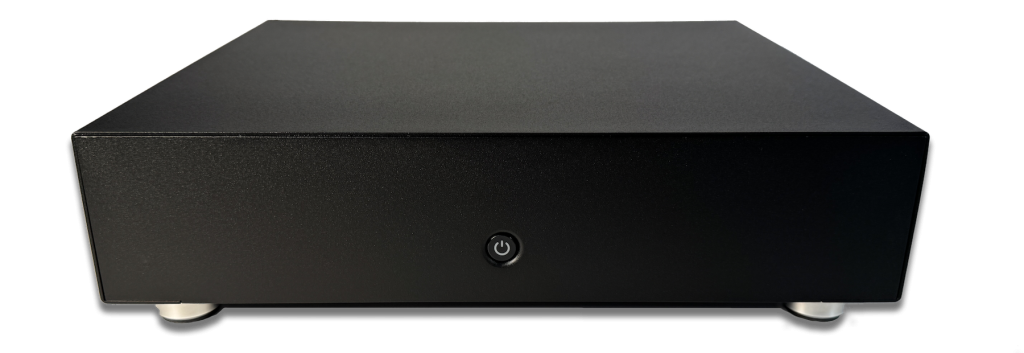

The SP500 is a sleeker, elegant and more affordable addition to Ultrafide’s range – but with the same power output, warm sonic purity and music-first ‘power with emotion’ engineering excellence. It features Ultrafide’s Ultra Sigma output topology and seamlessly integrates with other hi-fi components.
| Audio Channels (quantity) | 2 | 2 RCA (Single Ended) |
| Audio Inputs | 4 | 2 XLR (Balanced) |
| NOTE: Both input types are always active; thus 2 sources can be summed if desired | ||
| Input Impedance | 10k | RCA and XLR |
| Input RFI Filtering Capacitance | 550pF | RCA and XLR |
| Audio Outputs | 2 pairs 2 | Binding Post NL4 speakON |
| Output Impedance | 25mR | |
| Maximum Voltage | 70V | |
| Maximum Current | 30A | (pulsed testing) |
| Voltage Gain | 26dB (standard factory setting) | 29dB |
| Current Gain | 50,000 | 94dB |
| Sensitivity | 2.2 Volts | |
| Dynamic Range | 115dB | Un-Weighted 22-22kHz |
| Inter-stage Coupling | DC Coupled | |
| Frequency Response | 5 to 20kHz | +-0.3dB |
| Distortion | 0.003% at 5W | +-0.3dB |
| Rise/Fall Time | 10uS | |
| Stability | Unconditional | |
| RMS Power into 4R | 500W | 600W at high gain setting |
| RMS Power into 6R | 333W | 400W at high gain setting |
| RMS Power into 8R | 250W | 300W at high gain setting |
| RMS Power into 12R | 166W | 200W at high gain setting |
| NOTE: Amplifier is stable into 2 ohm loads but with no increased power.** | ||
| Power Supply Connector | 10A Furutech C13 IEC | |
| Fuse | 10A | |
| Nominal Power Supply Voltage | 230Vac (50Hz) | or 120Vac (60Hz) |
| Power Voltage Selector | Internal | |
| Power Isolation Switch | On Rear Panel | |
| Standby Switch | On Front Panel | |
| Remote Standby | Connector on Rear Panel | |
| Power Consumption operational | 200W average | 1,000W max |
| Power Consumption Idle | 15W | |
| Power Consumption Standby | 1W | |
| Current Consumption | 230v – 1A nominal (5A max) | 120v – 2A nominal (10A max) |
| Power Indicator | Green for Out of Standby | |
| Fault Indicator | Red Led illuminates if clipping or protection is active | |
| Product size / weight (packed) | 590(L) x 405(W) x 152(H)mm | 14.65kg (GROSS) |
